HD3US Splice Tray Enclosure

Name: HD3US Splice Tray Enclosure
Brand: One Optics
SKU: HD3US

3U rack mount · 6 sliding splice trays · 288F per tray · 1,728F

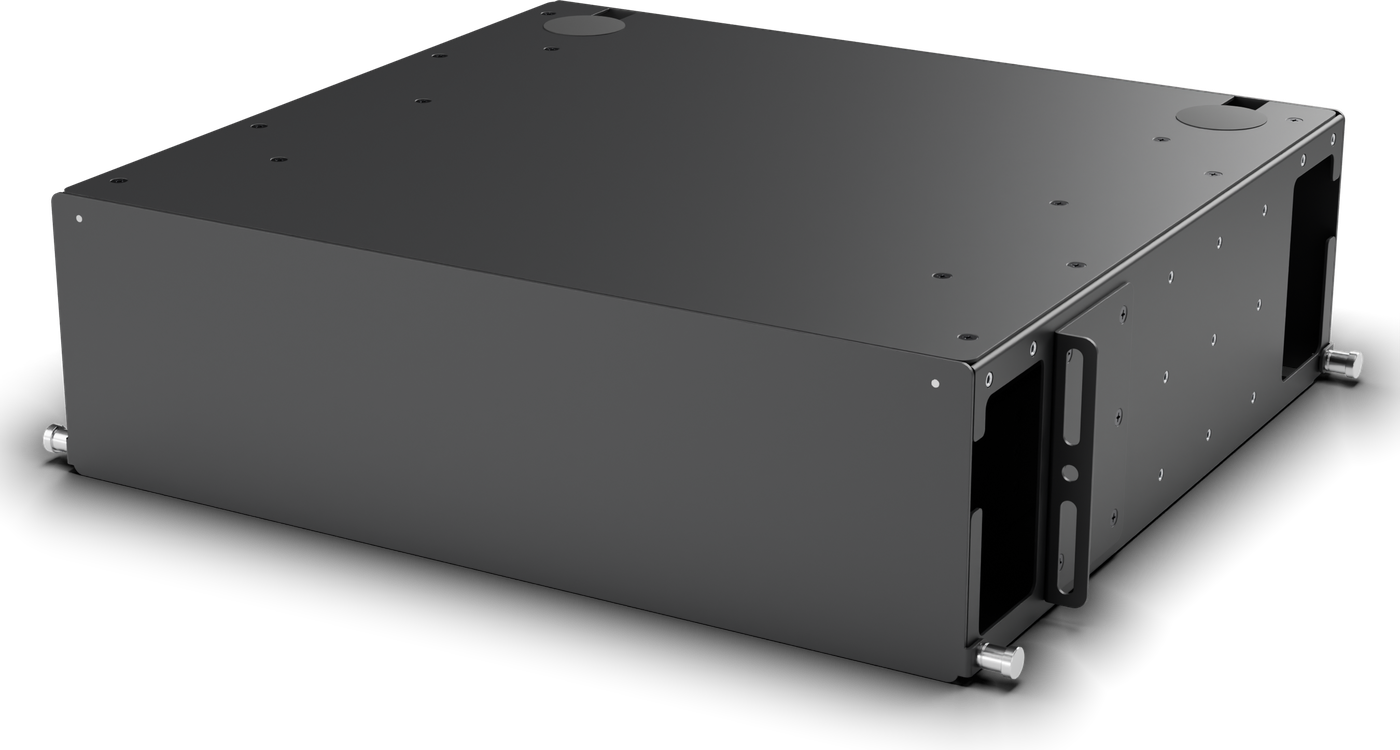

A 3U enclosure built only for splicing. Six molded splice trays ride on their own rails in two shelves of three, and each tray slides out the front by itself, so one tray can be worked without touching the others. One HD3US splices for up to six 288F HD3U panels.

6Sliding trays

288FPer tray

1,728FTotal in 3U

One standard configuration

HD3US

Chassis, six molded splice trays on rails, front and rear magnetic doors, lid with dome-plugged pass-throughs, rack ears. No build options.

Quote HD3US

PDF Get the Datasheet Request a Quote Configure

Overview

Six Trays. One at a Time.

The HD3US shares the HD3U 3U footprint, magnetic doors and rack ears, but carries no adaptor plates and no pigtails: the whole enclosure is given to the tray stack, with routing channels and retaining fingers on every tray for slack storage.

Six sliding molded splice trays on individual rails, two shelves of three
288 fibers per tray; 1,728 fibers in 3U
Removable magnetic front and rear doors with spring-loaded hinge pins
One-piece lid with two 1.5 in [38.1 mm] pass-throughs and dome plugs

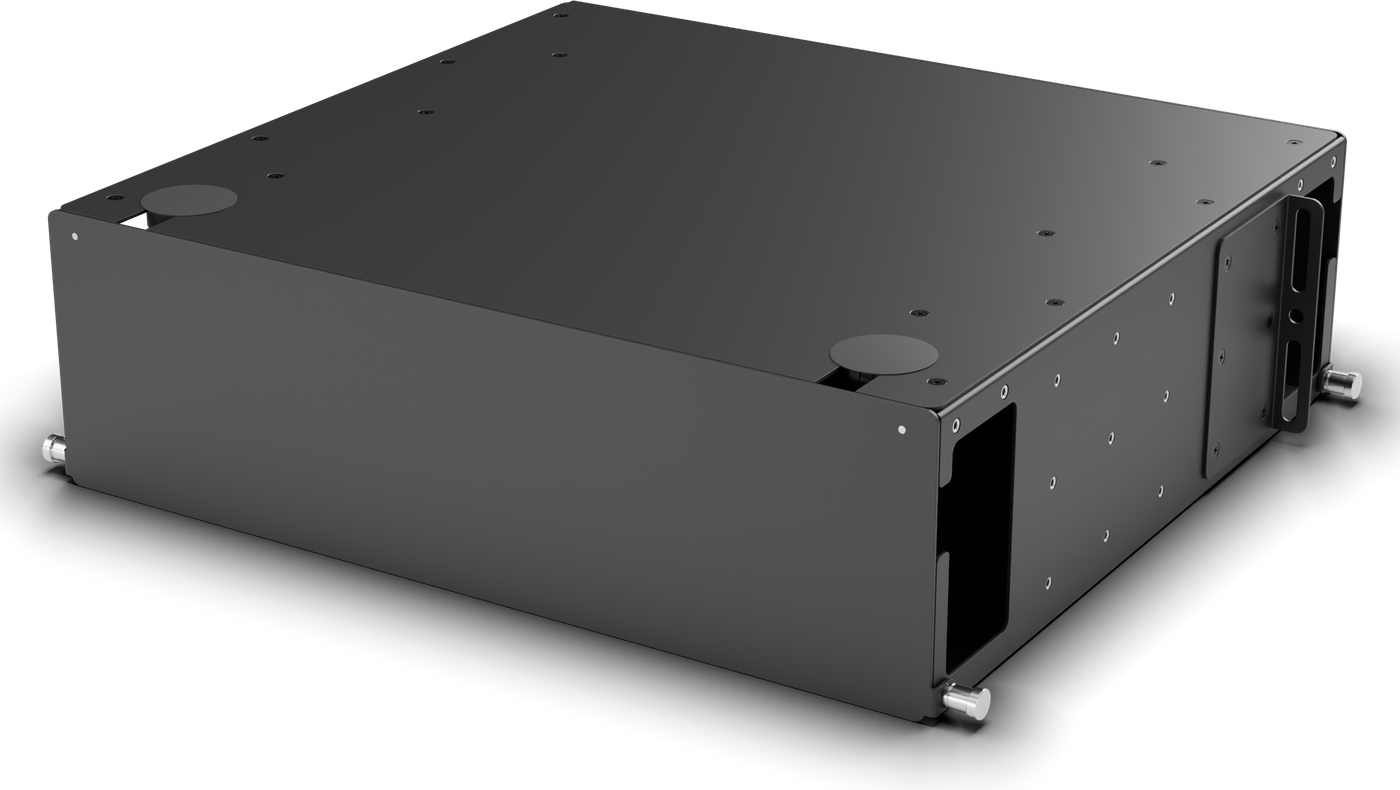

Rear cable entry
Remote splicing for up to six 288F HD3U panels
16 ga galvanneal steel, powder coated; Made in USA

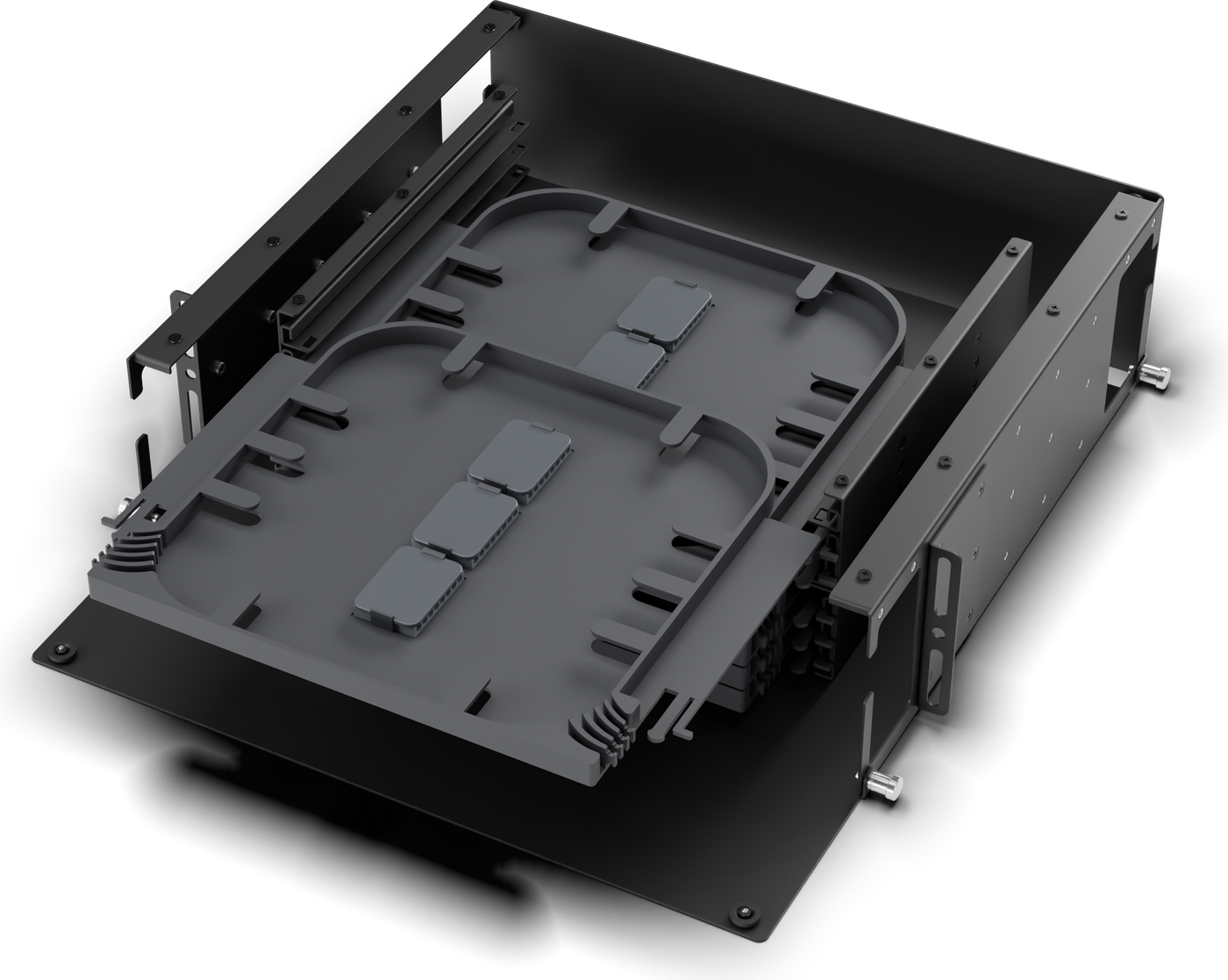

Lid removed, top tray out.

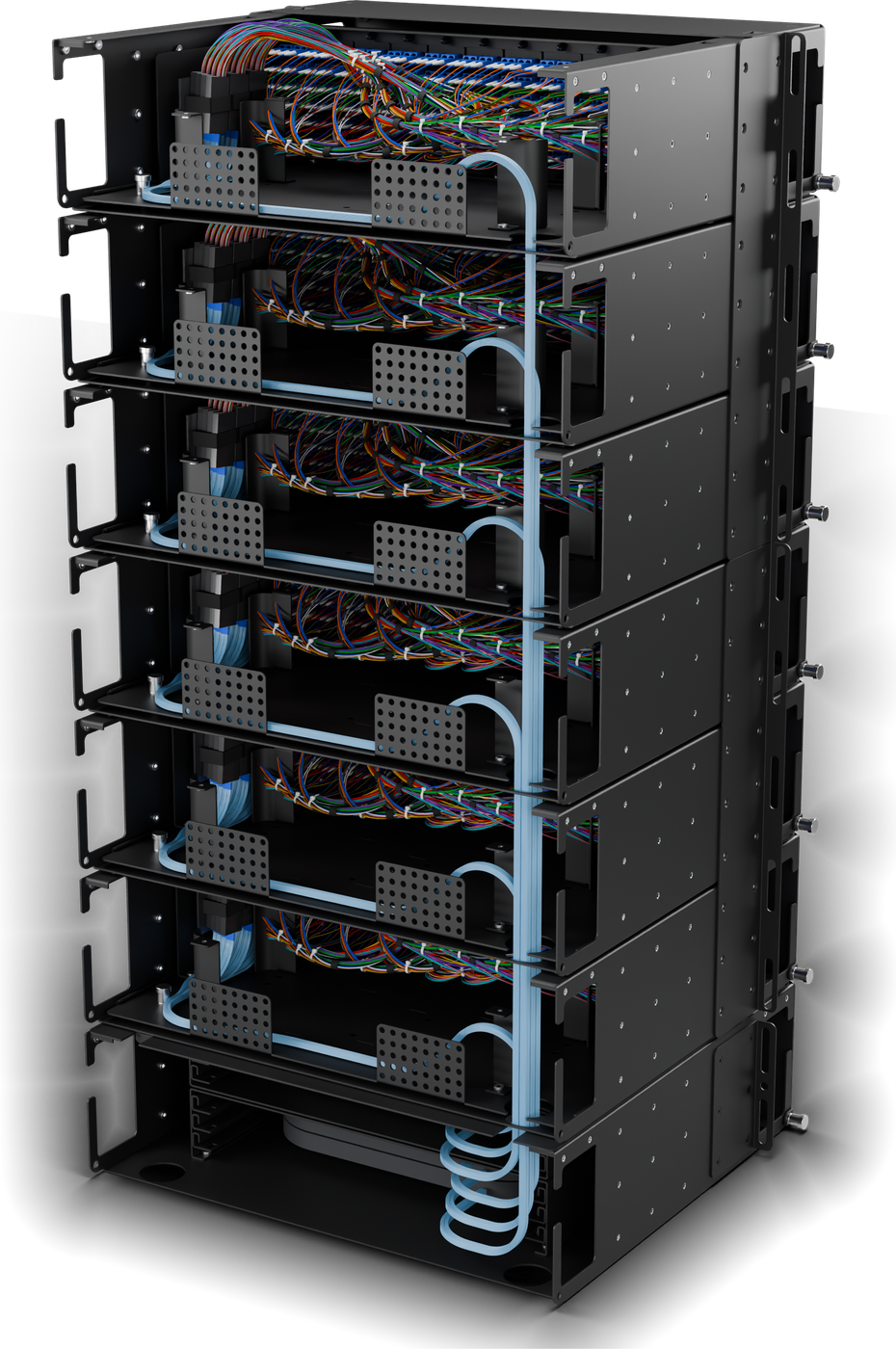

Rear: lids and rear panels off, ribbon pigtails drop through the 1.5 in pass-through knockouts, one HD3U per tray.

Remote Splicing

Patch in the HD3U. Splice in the HD3US.

To keep splicing out of the patch panel, order the HD3U as an NT build (ribbon pigtails installed, no splice trays; e.g. HD3U-R-LC-288-NT, HD9U-R-LC-864-NT), or adaptors only, and splice in a companion HD3US splice-only enclosure. Each HD3U has a 1.5 in [38.1 mm] pass-through knockout at the rear, aligned through the base, sliding tray and rear lid, so ribbon pigtails drop straight down to splice remotely.

Splice for Six HD3U Panels in One HD3US: Remote-Splice Stacks

A remote-splice stack ships as one part number: HD3U panels with ribbon singlemode pigtails and no splice trays (-NT builds), stacked over HD3US splice-only enclosures, one HD3US for every six HD3U. Pigtails drop through the 1.5 in [38.1 mm] pass-through knockouts into the HD3US trays, one 288F tray per HD3U.

Part Number	HD3U	HD3US	Trays	Rack	Fibers
`HD21U-R-LC-1728`	Remote splice stack, 1,728F: 6x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	1	6	21U	1,728
`HD42U-R-LC-3456`	Remote splice stack, 3,456F: 12x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	2	12	42U	3,456
`HD21U-R-SC-864`	Remote splice stack, 864F: 6x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	1	6	21U	864
`HD42U-R-SC-1728`	Remote splice stack, 1,728F: 12x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	2	12	42U	1,728

HD21U = 21U: 6x HD3U over 1x HD3US. HD42U = 42U: 12x HD3U over 2x HD3US. LC = LC/UPC · LA = LC/APC · SC = SC/UPC · SA = SC/APC. APC: replace LC with LA or SC with SA in the same code, e.g. HD21U-R-LA-1728 or HD42U-R-SA-1728.

One HD3US serves up to six 288F HD3U panels: 6 trays x 288F = 1,728F in 3U
HD3U stays a clean patch panel; every splice lives in the HD3US
NT = pigtails installed, no splice trays, for splicing in a separate HD3US
Each tray slides out on its own rails, so finished splices are not disturbed

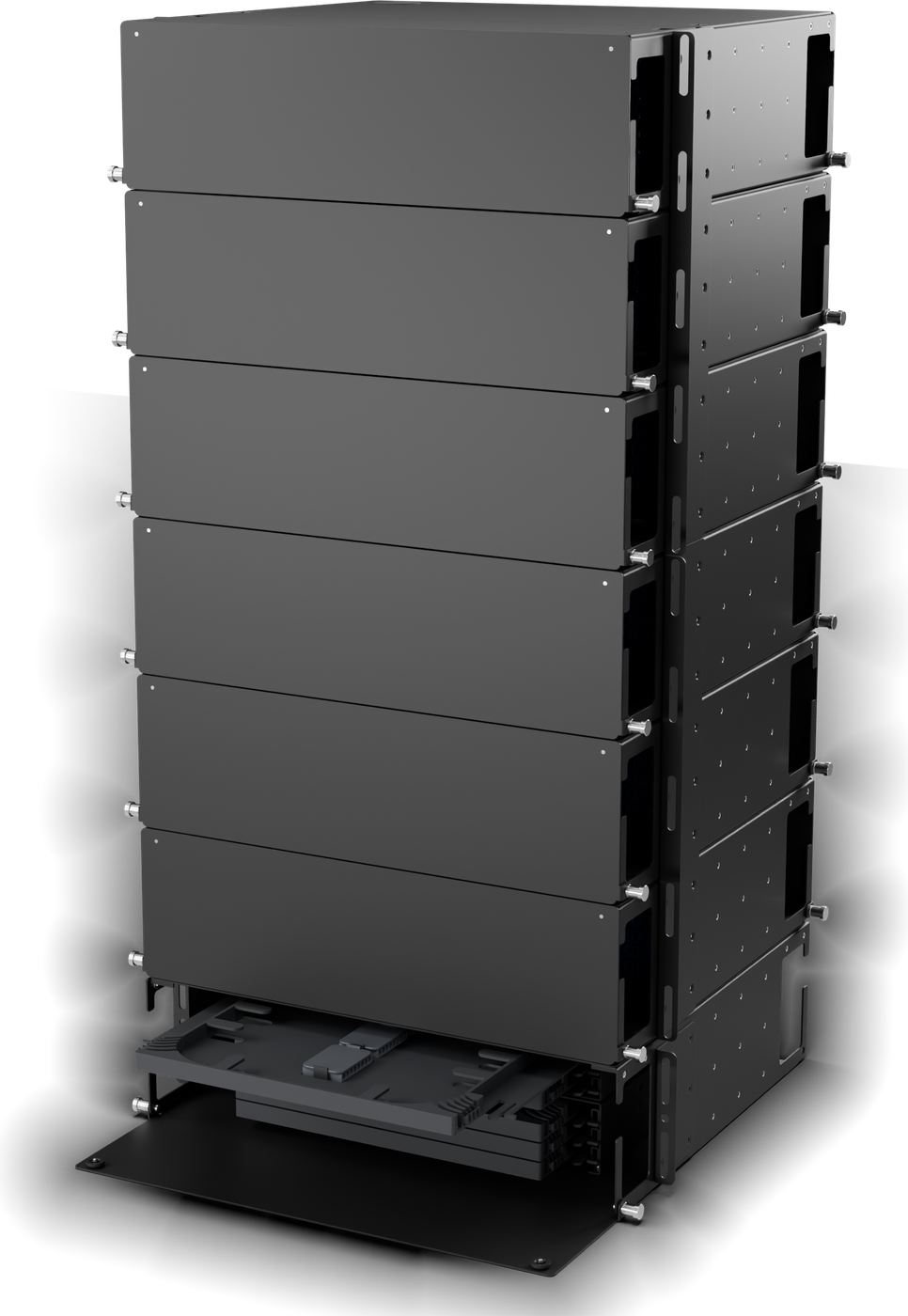

Front: HD3U doors closed; HD3US door open with one tray slid out.

View the HD3U

Specifications

Rack Units	3U, 19 in rack mount
Dimensions (H x W x D)	5.20 x 17.70 x 16.06 in [132.0 x 449.6 x 408.0 mm]
Width with Rack Ears	19.01 in [482.8 mm]
Trays	6 sliding molded splice trays, 2 shelves of 3
Tray Capacity	288 fibers per tray; 1,728 total
Tray Size	13.60 x 10.50 x 0.65 in [345.5 x 266.8 x 16.5 mm]
Tray Material	Black ABS+PC, molded
Weight	Approx. 32 lb [14.3 kg] with 6 trays
Doors	Front and rear, magnetic, removable
Lid	Removable, one piece; 2x 1.5 in pass-throughs with dome plugs
Cable Entry	Rear
Material	16 ga galvanneal steel, powder coated
Origin	Made in USA
Compliance	Build America, Buy America (BABA) compliant, self-certified. Compliance letter available on request.
Documentation	Test data and certificate of conformance available on request.

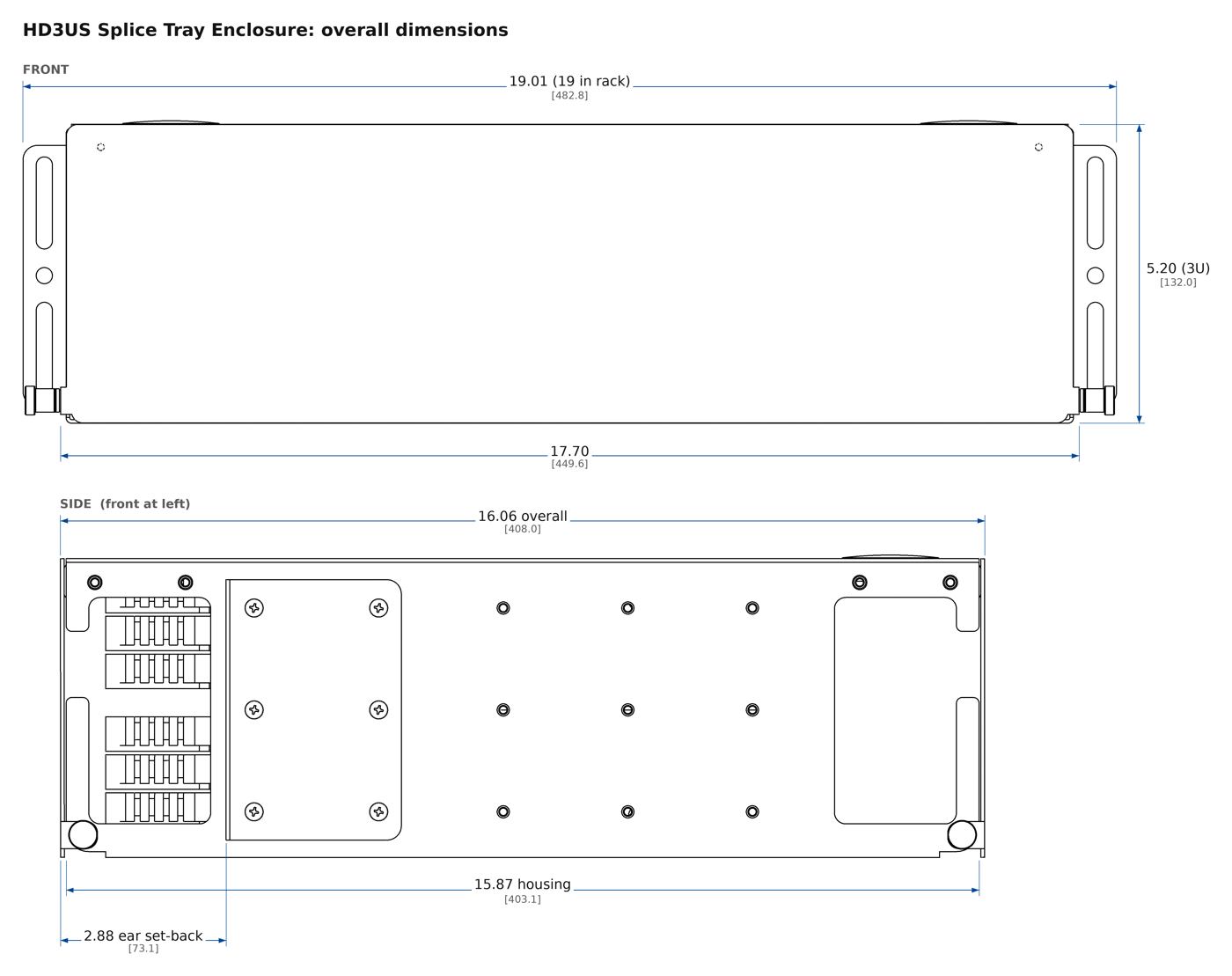

Front and side views, doors closed. Dimensions in inches [mm].

Ordering

Standard Part Numbers

Part Number	Description
`HD3US`	3U splice-only enclosure, one standard configuration: 6 sliding molded splice trays (288 fibers per tray, 1,728 fibers total) in 2 shelves, front and rear magnetic doors, removable lid with 2 pass-throughs, rack ears. No adaptor plates or pigtails. Splices for up to six 288F HD3U panels.	Quote
`HD21U-R-LC-1728`	Remote splice stack, 1,728F: 6x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	Quote
`HD42U-R-LC-3456`	Remote splice stack, 3,456F: 12x HD3U with 288-port LC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	Quote
`HD21U-R-SC-864`	Remote splice stack, 864F: 6x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 1x HD3US with 6 black splice trays.	Quote
`HD42U-R-SC-1728`	Remote splice stack, 1,728F: 12x HD3U with 144-port SC/UPC plates and ribbon singlemode pigtails, over 2x HD3US with 6 black splice trays each.	Quote
`HD3U-R-LC-288-NT`	HD3U panel, 288F: 12x 24-port LC/UPC plates and ribbon singlemode pigtails, no splice trays; splices in an HD3US.	Quote
`HD3U-R-SC-144-NT`	HD3U panel, 144F: 12x 12-port SC/UPC plates and ribbon singlemode pigtails, no splice trays; splices in an HD3US.	Quote

Order the HD3US on its own, with paired HD3U -NT panels, or as a remote-splice stack in one part number. HD3US trays are also used in the Fiber Entrance Cabinet.
