![Front, side and rear views. Dimensions in inches [mm].](assets/img/wm6x-dimensions.png?v=54791aa98a)
The high-capacity member of the wall mount family: an indoor patch and splice enclosure for six HD adaptor plates, with more room for splice trays, slack and cable entries. The splice side and the patch side each sit behind their own lockable door.
Six HD adaptor plates sit on the partition in three openings of two. Feeder cable is spliced to Corning fiber pigtails in the trays on the splice side; patch cords connect on the patch side behind a separate door.

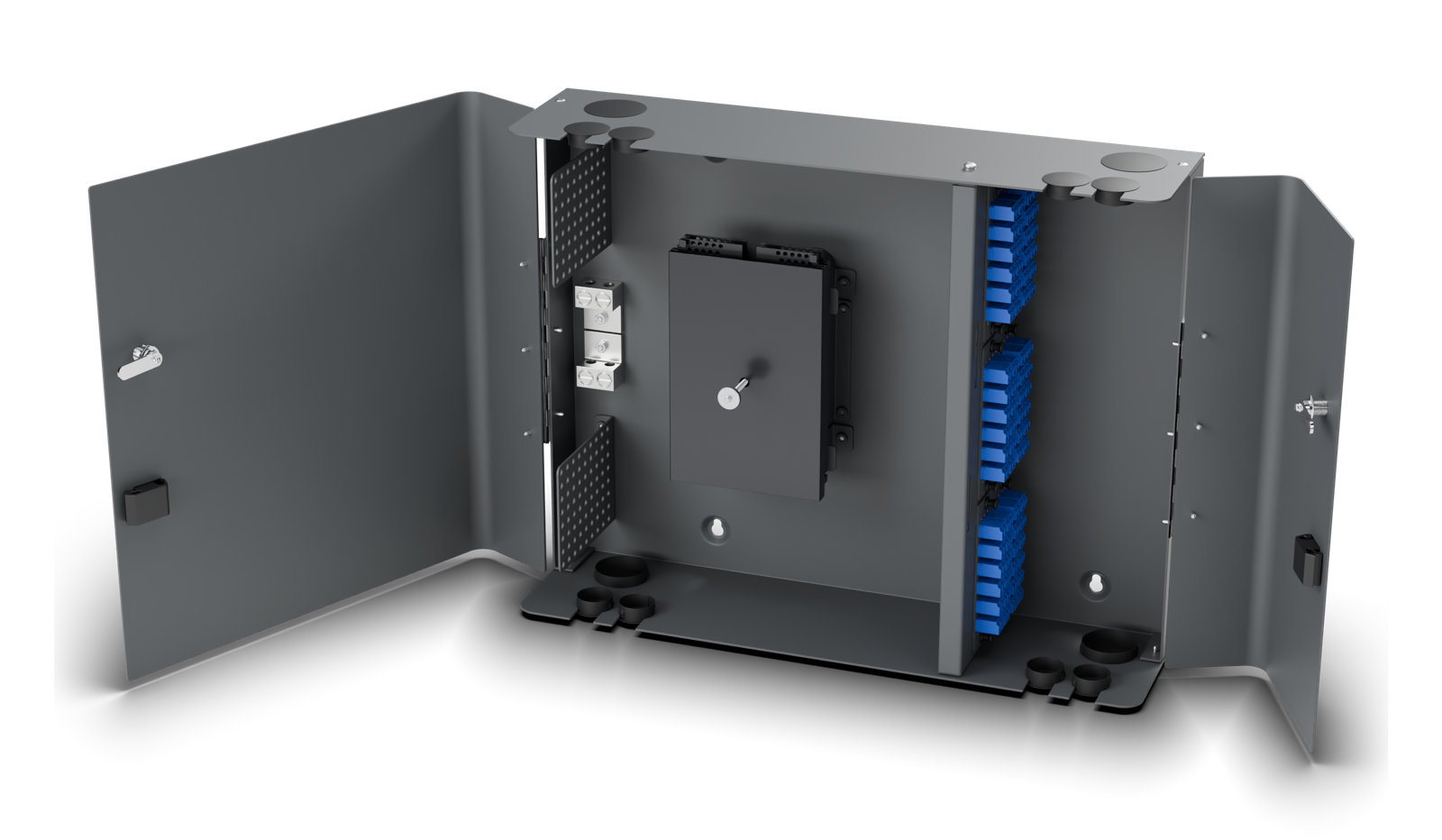

Doors open. Ribbon LC build, 144F: 6x 24-port LC/UPC plates and black metallic splice trays. Pigtails not pictured.

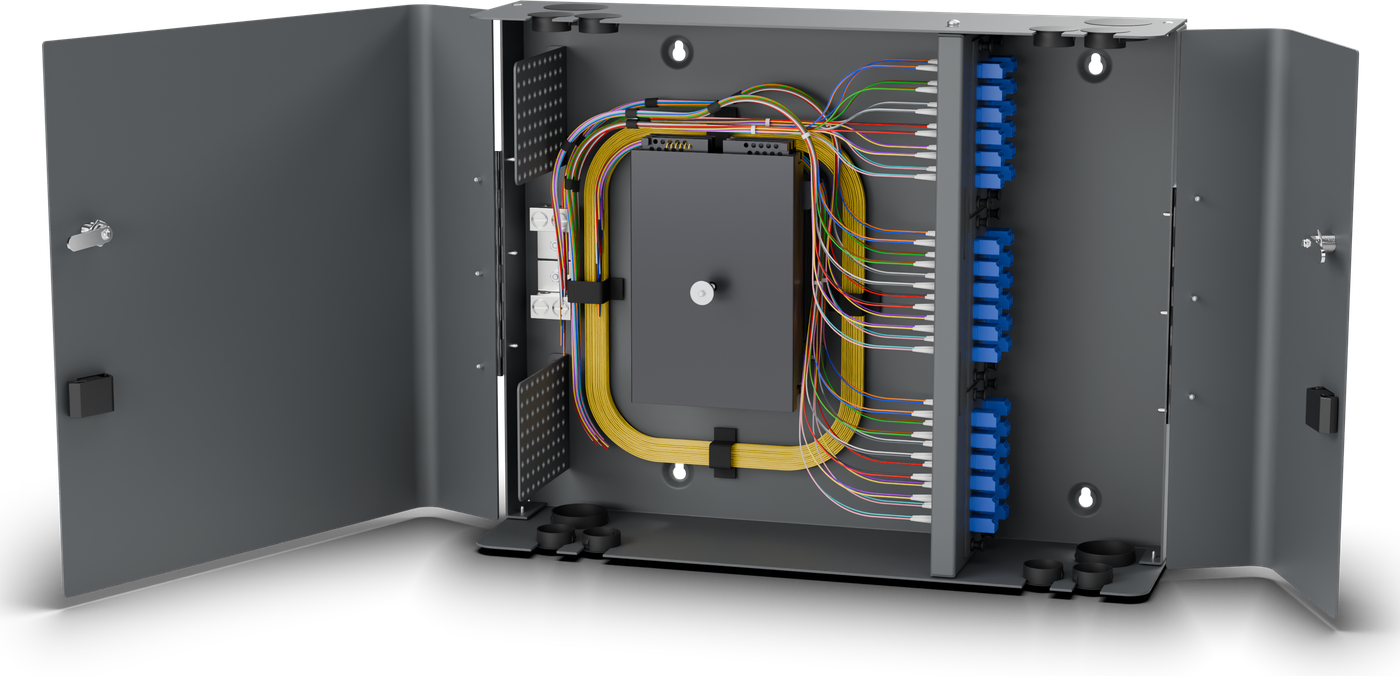

Loose tube build, 72F: 6x 12-port SC or LC plates, 900 µm loose tube singlemode pigtails, and black metallic splice trays.
Ribbon LC build, 144F: 6x 24-port LC/UPC plates, ribbon singlemode pigtails, and black metallic splice trays.

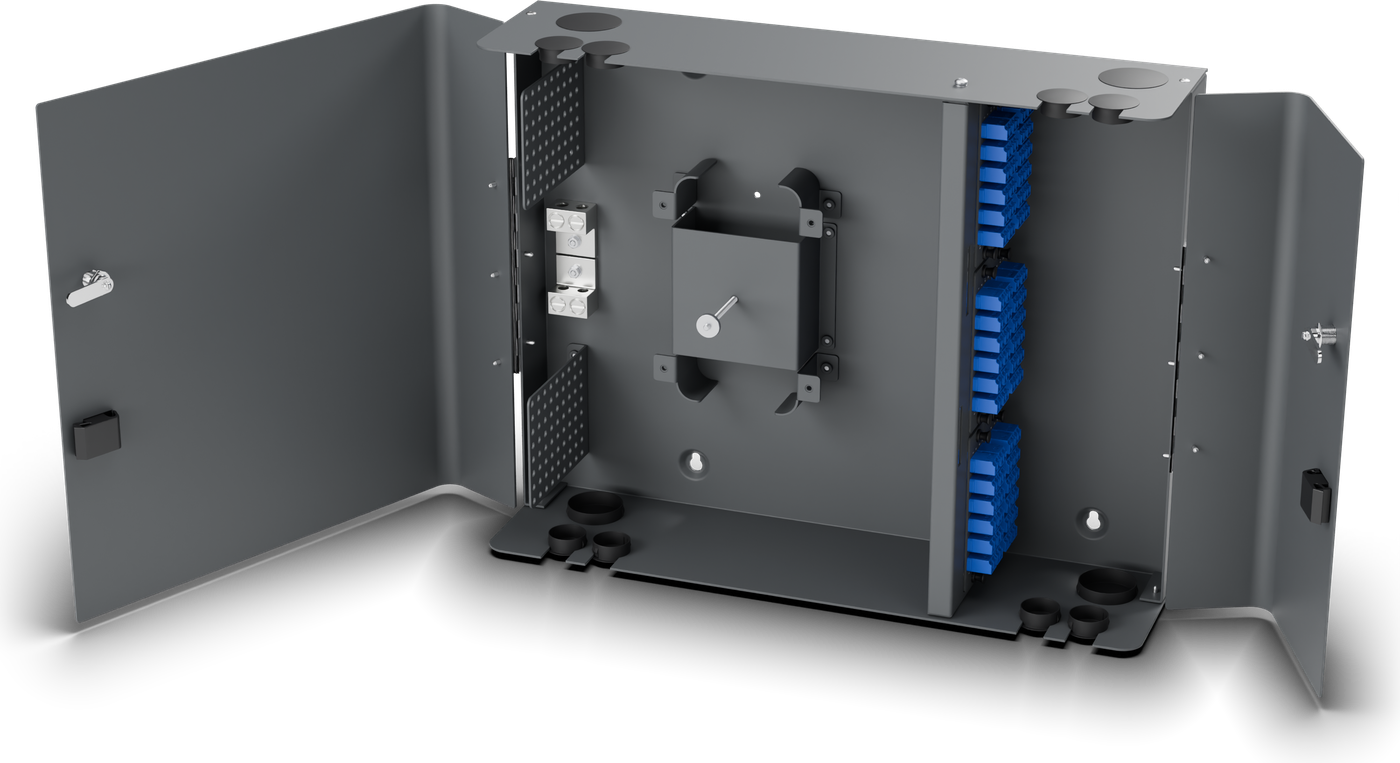

Adaptors only build, 144F: 6x 24-port LC/UPC plates, no pigtails and no splice trays. Example: WMHD6X-A-LC-144.

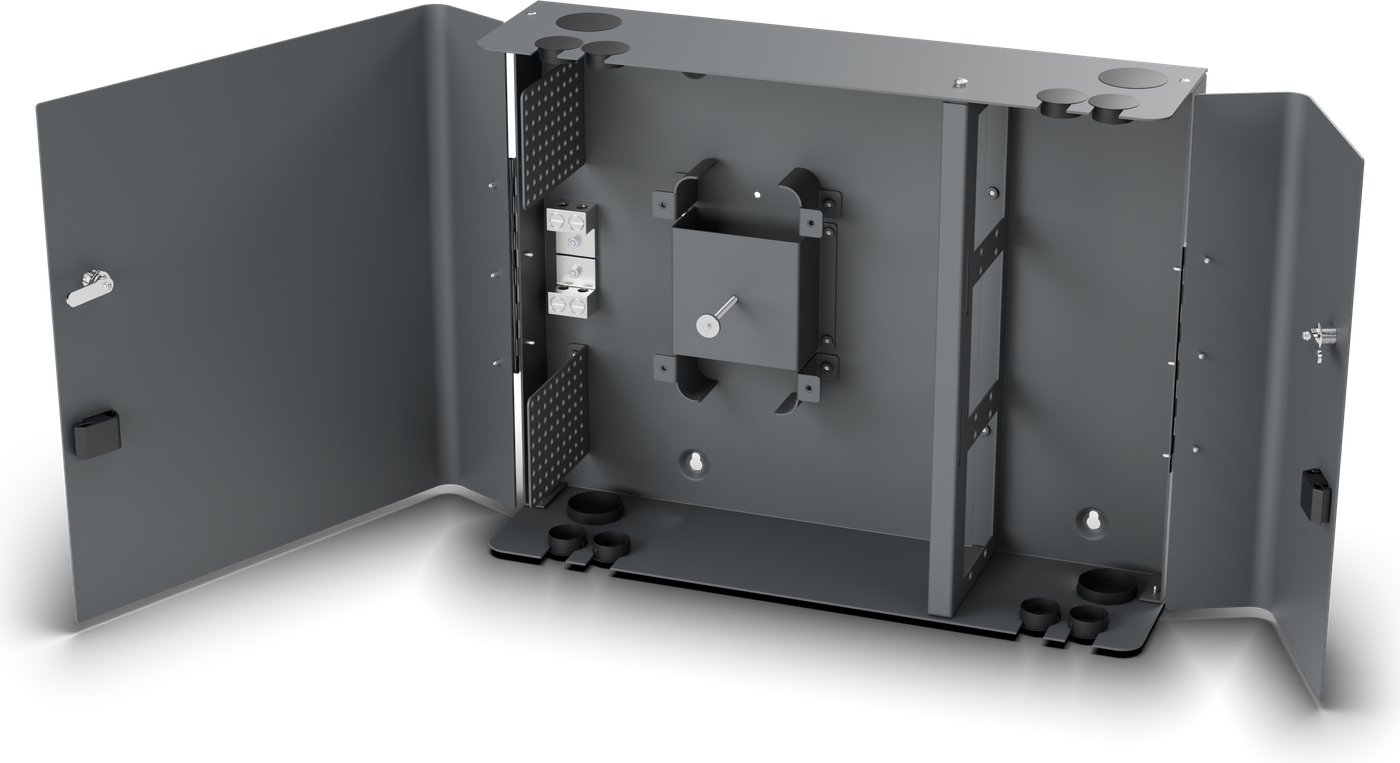

Empty enclosure: no adaptor plates, pigtails or splice trays. All 6 HD adaptor positions are open. Order as WMHD6X-E.
| Panel Type | Wall mount, dual door, lockable |
|---|---|
| Body (W x H x D) | 17.61 x 13.80 x 4.44 in [447.2 x 350.6 x 112.8 mm] |
| Overall (W x H x D) | 18.03 x 14.15 x 4.77 in, incl. hinges and door hardware |
| Material | 16 GA galvanneal steel, dark gray powder coat (PMS 425C) |
| Weight | Approx. 16 lb [7.2 kg], empty |
| Origin | Made in USA |
| Module Capacity | 6x HD positions: 12/24-port LC or LC/APC, 12-port SC or SC/APC, MTP and Cat 6 RJ45 plates, MPC-24-LC-A/-U and OOFC-24 cassettes (no 36-port plates or cassettes) |
| Compatible | MPC-24-LC-A / -U pass-through and OOFC-24 splice cassettes |
| Fiber Capacity | 72 SC or LC loose tube; 144 LC ribbon |
| Splicing | Black metallic splice trays on a splice tray mount, 4 radius guides |
| Doors | 2 hinged doors, quarter-turn cam locks, push-to-close latches |
| Cable Entry | 12 ports with dome plugs (8x 1 in, 4x 1.5 in) |
| Grounding | 2 ground lugs, 2-wire, 14 AWG to 1/0 |
| Mounting | 4 keyhole slots, 11.00 x 11.30 in pattern |
| In the Box | Wall screws (6), keys (2), Velcro, laser warning sticker, tie mounts (2), zip ties, port ID chart, medium and large compression fittings |
| Compliance | Build America, Buy America (BABA) compliant, self-certified. Compliance letter available on request. |
| Documentation | Test data and certificate of conformance available on request. |

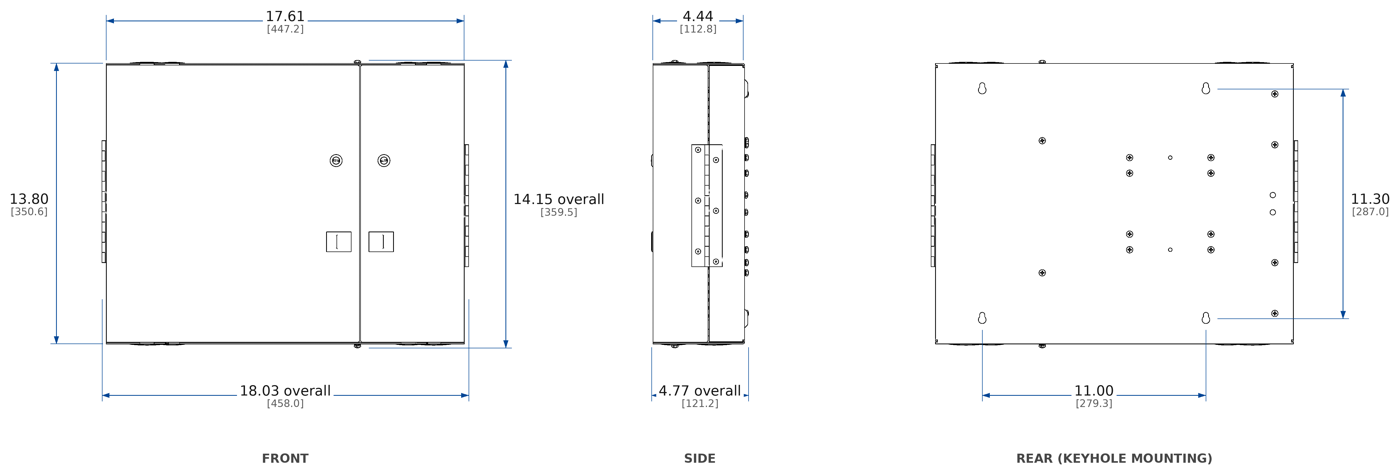

Front, side and rear views. Dimensions in inches [mm].
| Part Number | Description | |
|---|---|---|
WMHD6X-L-SC-24 | Loose tube, 24 ports SC/UPC (2x 12-port SC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD6X-L-SC-48 | Loose tube, 48 ports SC/UPC (4x 12-port SC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD6X-L-SC-72 | Loose tube, 72 ports SC/UPC (6x 12-port SC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD6X-L-SA-72 | Loose tube, 72 ports SC/APC (6x 12-port SC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD6X-L-LC-24 | Loose tube, 24 ports LC/UPC (2x 12-port LC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD6X-L-LC-48 | Loose tube, 48 ports LC/UPC (4x 12-port LC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD6X-L-LC-72 | Loose tube, 72 ports LC/UPC (6x 12-port LC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD6X-R-SC-24 | Ribbon, 24 ports SC/UPC (2x 12-port SC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-R-SC-48 | Ribbon, 48 ports SC/UPC (4x 12-port SC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-R-LC-144 | Ribbon, 144 ports LC/UPC (6x 24-port LC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-R-LA-144 | Ribbon, 144 ports LC/APC (6x 24-port LC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-R-SC-72 | Ribbon, 72 ports SC/UPC (6x 12-port SC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-R-LC-24 | Ribbon, 24 ports LC/UPC (2x 12-port LC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-R-LC-48 | Ribbon, 48 ports LC/UPC (4x 12-port LC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-R-LC-72 | Ribbon, 72 ports LC/UPC (6x 12-port LC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD6X-A-LC-144 | Adaptors only: 144 ports LC/UPC (6x 24-port LC plates); no pigtails, no splice trays | Quote |
WMHD6X-E | Empty enclosure: no adaptor plates, pigtails or splice trays | Quote |
Custom | Other connectors, polishes, fiber types and counts within capacity | Quote |
Part number format: WMHD6X-[L/R/A]-[LC/LA/SC/SA]-[count] or WMHD6X-E. Fiber style: L = 900 µm loose tube pigtails, R = ribbon pigtails, A = adaptor plates only (no pigtails or trays), E = empty (no suffix). Connector/polish: LC = LC/UPC, LA = LC/APC, SC = SC/UPC, SA = SC/APC. Trailing number = fiber count (port count on A builds). Singlemode is standard; multimode available on request.
LC, SC, MTP, Cat 6 RJ45 and blank, one footprint.
View →
MPC-24-LC-A (Type A) and MPC-24-LC-U (Method B / Universal): 2x MTP-12 to 12 LC duplex.
View →
900 µm loose tube and ribbon, 3 m, TIA-598 color code.
View →
OSP 12 to 144F, plenum 12 to 288F, built to length.
View →4-page PDF: builds, installation, dimensions, specifications and part numbers.
