![Front, side and rear views. Dimensions in inches [mm].](assets/img/wm2x-dimensions.png?v=f91ff5102a)
A compact indoor patch and splice wall box for drops of 12 to 48 fibers. Two HD adaptor plates sit on a center partition, with the splice side and the patch side each behind its own lockable door.
Feeder cable enters the splice compartment, is spliced to Corning fiber pigtails in the tray, and the pigtails land on the back of the HD plates. Patch cords connect on the other side, behind a separate door. A layout any fiber technician will know, for MSO business installs and MDUs.

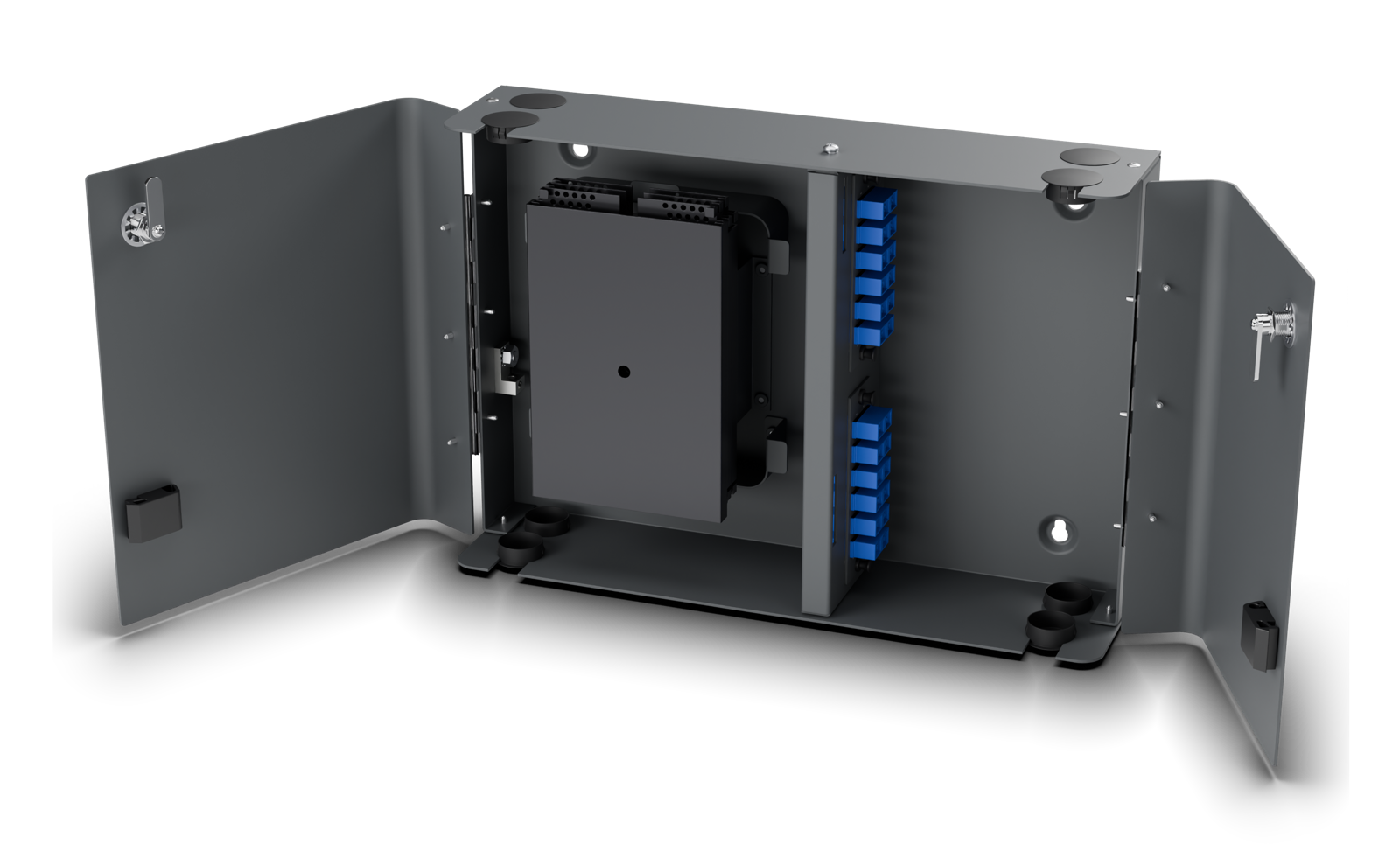

Doors open. 2x 12-port SC/UPC plates on the center partition; black metallic splice trays and radius guides on the left. Pigtails not pictured.

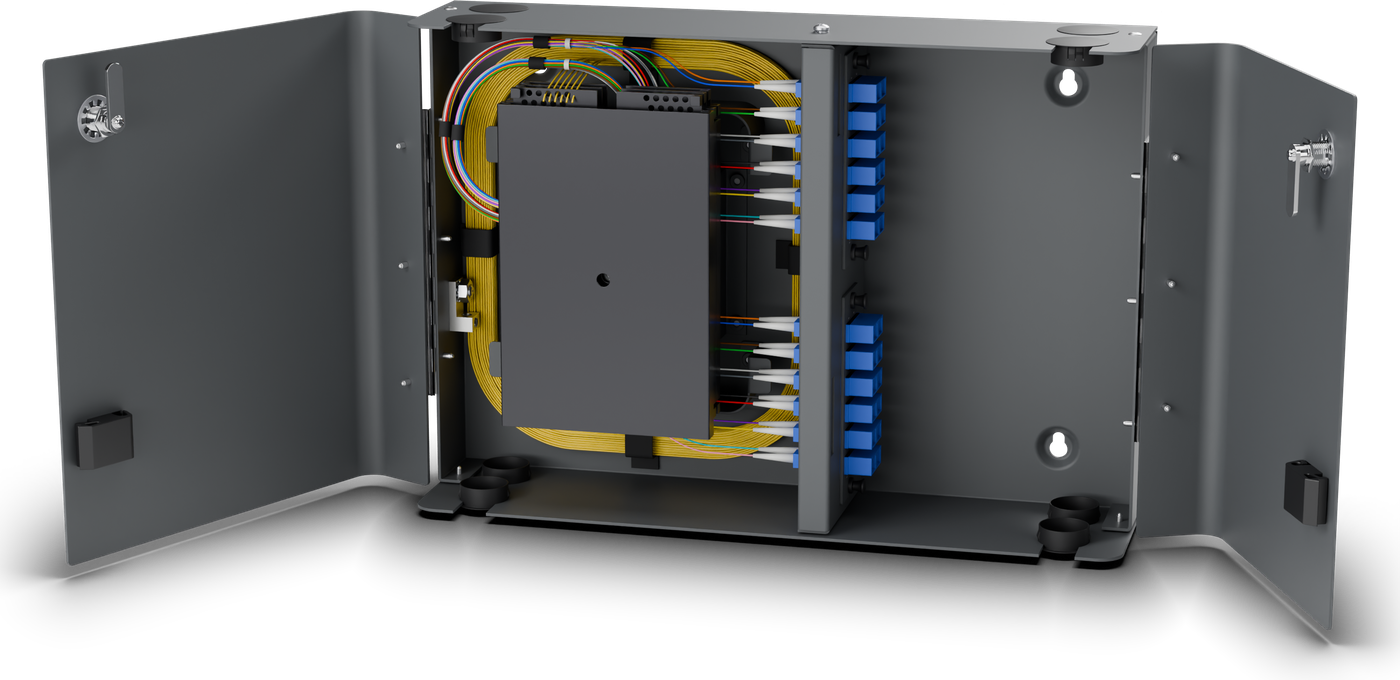

A single-fusion build for loose tube cable. Two 12-port SC plates, 3 m color-coded 900 µm pigtails, and black metallic splice trays. Up to 24 fibers.
The same loose tube build on LC. Two 12-port plates, six LC duplex adaptors each, for up to 24 fibers.

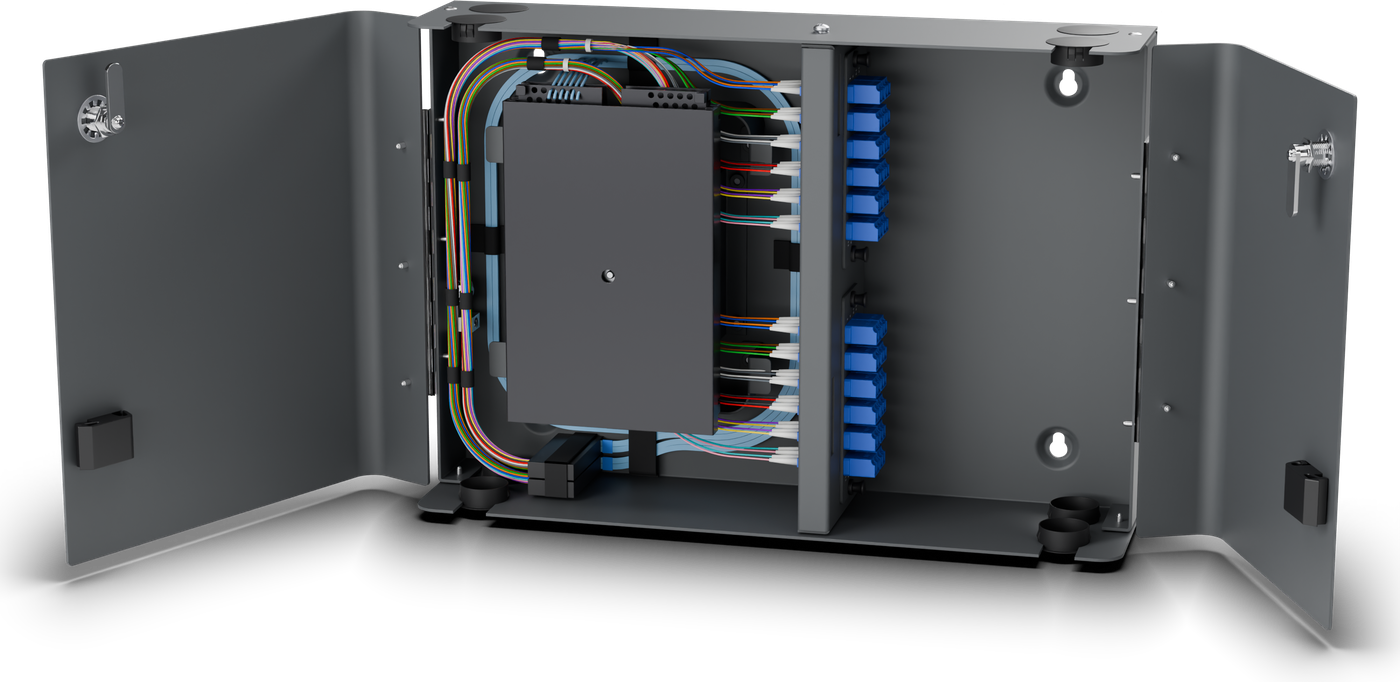

A mass-fusion build for ribbon cable. Two 24-port LC plates, ribbon pigtails, and black metallic splice trays. Up to 48 fibers.

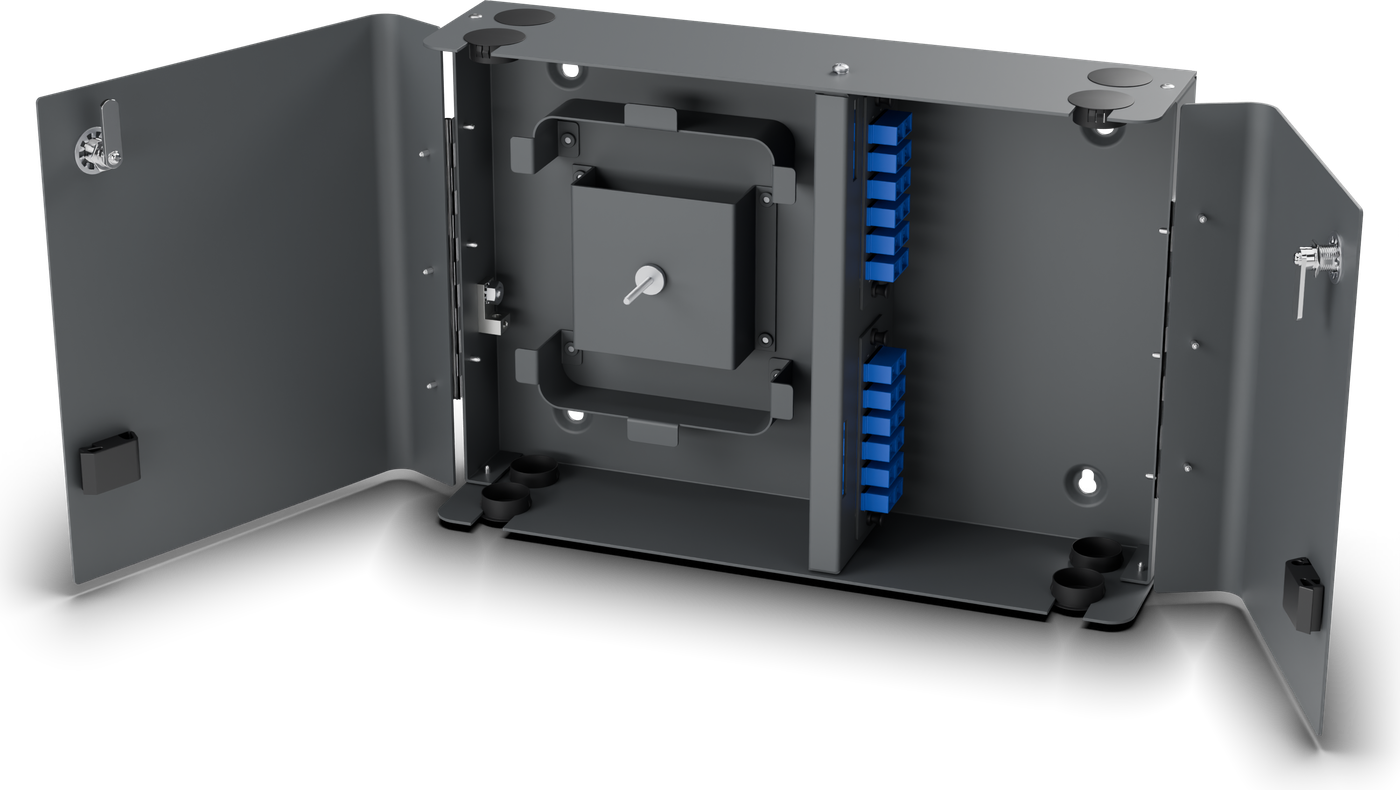

The enclosure ships with HD adaptor plates loaded in the connector and polish you choose, with no pigtails and no splice trays. Example: WMHD2X-A-SC-24.

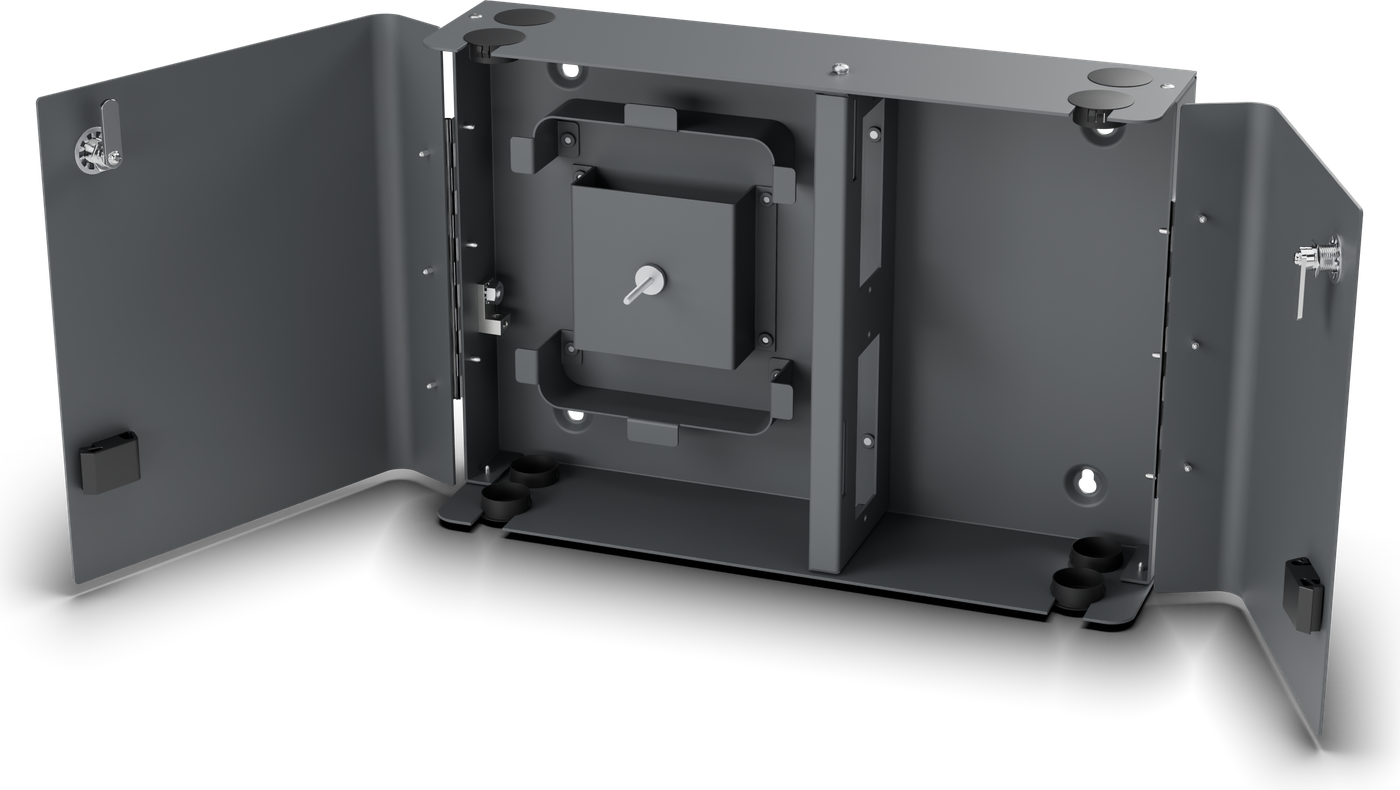

The bare enclosure, with no adaptor plates, pigtails or splice trays. All 2 HD adaptor positions are open for the plates you add. Order as WMHD2X-E.
| Panel Type | Wall mount, dual door, lockable |
|---|---|
| Body (W x H x D) | 14.50 x 10.00 x 3.50 in [368.3 x 254.0 x 88.9 mm] |
| Overall (W x H x D) | 14.93 x 10.32 x 3.78 in, incl. hinges and door hardware |
| Weight | Approx. 10 lb [4.5 kg], empty |
| Material | 16 GA galvanneal steel, dark gray powder coat (PMS 425C) |
| Origin | Made in USA |
| Module Capacity | 2x HD positions: 12/24-port LC or LC/APC, 12-port SC or SC/APC, MTP and Cat 6 RJ45 plates, MPC-24-LC-A/-U and OOFC-24 cassettes (no 36-port plates or cassettes) |
| Compatible | MPC-24-LC-A / -U pass-through and OOFC-24 splice cassettes |
| Fiber Capacity | 24 SC or 48 LC (patch and splice) |
| Splicing | Black metallic splice trays on a splice tray mount, 2 radius guides |
| Doors | 2 hinged doors, quarter-turn cam locks, push-to-close latches |
| Cable Entry | 8x 1 in ports with dome plugs |
| Grounding | Ground lug, 4–14 AWG |
| Mounting | 4 keyhole slots, 11.00 x 7.50 in pattern |
| In the Box | Wall screws (6), keys (2), Velcro, laser warning sticker, tie mounts (2), zip ties, port ID chart |
| Compliance | Build America, Buy America (BABA) compliant, self-certified. Compliance letter available on request. |
| Documentation | Test data and certificate of conformance available on request. |

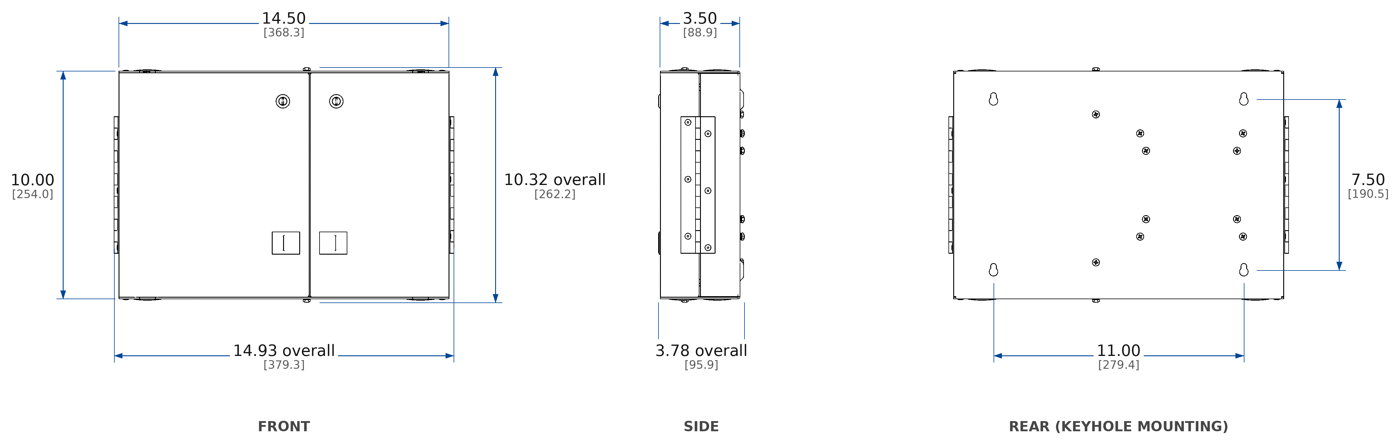

Front, side and rear views. Dimensions in inches [mm].
| Part Number | Description | |
|---|---|---|
WMHD2X-L-SC-12 | Loose tube, 12 ports SC/UPC (1x 12-port SC plate), 3 m 900 µm single fusion pigtails and splice tray | Quote |
WMHD2X-L-SC-24 | Loose tube, 24 ports SC/UPC (2x 12-port SC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD2X-L-LC-12 | Loose tube, 12 ports LC/UPC (1x 12-port LC plate), 3 m 900 µm single fusion pigtails and splice tray | Quote |
WMHD2X-L-LC-24 | Loose tube, 24 ports LC/UPC (2x 12-port LC plates), 3 m 900 µm single fusion pigtails and splice trays | Quote |
WMHD2X-R-SC-24 | Ribbon, 24 ports SC/UPC (2x 12-port SC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD2X-R-LC-24 | Ribbon, 24 ports LC/UPC (2x 12-port LC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD2X-R-LC-48 | Ribbon, 48 ports LC/UPC (2x 24-port LC plates), 3 m ribbon mass fusion pigtails and splice trays | Quote |
WMHD2X-A-SC-24 | Adaptors only: 24 ports SC/UPC (2x 12-port SC plates); no pigtails, no splice trays | Quote |
WMHD2X-E | Empty enclosure: no adaptor plates, pigtails or splice trays | Quote |
Custom | Other connectors, polishes, fiber types and counts within capacity | Quote |
Part number format: WMHD2X-[L/R/A]-[LC/LA/SC/SA]-[count] or WMHD2X-E. Fiber style: L = 900 µm loose tube pigtails, R = ribbon pigtails, A = adaptor plates only (no pigtails or trays), E = empty (no suffix). Connector/polish: LC = LC/UPC, LA = LC/APC, SC = SC/UPC, SA = SC/APC. Trailing number = fiber count (port count on A builds). Singlemode is standard; multimode available on request.
LC, SC, MTP, Cat 6 RJ45 and blank, one footprint.
View →
MPC-24-LC-A (Type A) and MPC-24-LC-U (Method B / Universal): 2x MTP-12 to 12 LC duplex.
View →
900 µm loose tube and ribbon, 3 m, TIA-598 color code.
View →
LC and SC, UPC or APC, 1 to 100 m.
View →4-page PDF: builds, installation, dimensions, specifications and part numbers.
